1.8.4”TFT ture color LCD screen
2.working nmode:SHR work mode+IPL work mode
3.Japanese Capacitors+USA xenon Lamp
4.Guarrantee: 300,000 shots for each handle
OPT KEY-170+ | |
Operation Interface | 8.4 " TFT True Color LCD Screen |
Wavelength | 610-950nm(SHR) 530-950nm(SSR) |
OPT Frequency | 1-10HZ ( 1 second emit 1-10flashes) |
Spot Size | 10*50mm² (standard) |
Energy | 1-50J/cm² |
Pulse Width | 1-30ms |
Pulse Delay | 1-50ms |
Pulse Amount | 1-6 |
Handle | 1X610-950nm(SHR) |
1X530-950nm(SR) | |
Handle Crystal | 100% Real Sapphire Crystal, Not Quartz |
SHR Power | 3500W |
Contious Shotting Non-Stop | 12 Hours Continuously Working ( non-stop) |
Lamp | USA Imported Lamp |
Working Mode | SHR work mode +IPL work mode |
Net Weight | 49KG |

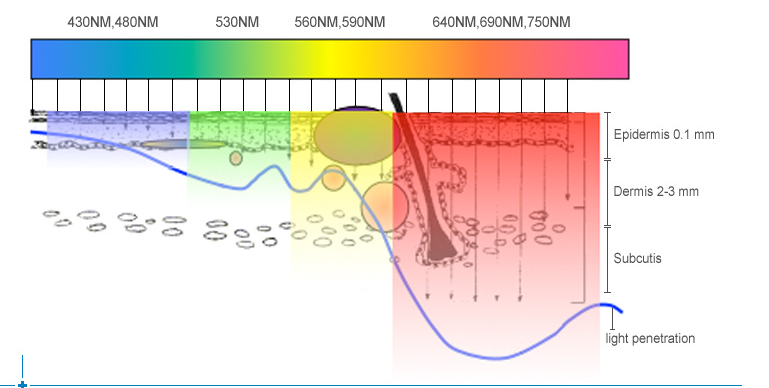

IPL (Intense Pulsed Light) is a kind of light with high energy and broad wavelength, within the range from 420nm to 1200nm. According to the principle of IPL photorejuvenation technology, intense pulsed light with broad spectrum affects pigmentations, broken capillary vessels and hair follicles.
430nm -1200nm: | Acne Treatment |
480nm -1200nm: | Pigmentation therapy |
530nm - 1200nm: | Pigmentation therapy |
560nm - 1200nm: | Skin rejuvenation(whitening tender) |
590nm - 1200nm: | Vascular therapy |
640nm - 1200nm: | Hair removal (Asian) |
690nm - 1200nm: | Hair removal(brown hair) |
750nm - 1200nm: | Hair removal(Curly) Varicose veins treatment |
![C1]PIIV}5(@6SSCT261FSTM.png](/ueditor/asp/upload/image/20160121/14533557505332151.png "C1]PIIV}5(@6SSCT261FSTM.png")
1. Super hair removal: permanently remove unwanted hair on all parts of the body
2. Vascular removal: remove vascular lesions on face and bottlenose
3. Wrinkle removal: Remove the wrinkles and shrink the skin pores
4. Pigmentation removal: Lighten and remove all kinds of pigmented lesions e.g. speckles age-spot, sun-induced spots
5. Acne removal: Lighten and remove acne
6. Remove skin flaws and improve the skin quality
7. Skin-rejuvenation, skin-whitening and enhance the skin elasticity
1. Big power 3500W, stronger energy, more better treatment effect
2. Germany hose, good quality, longevity
3. Machine with true sapphir crystal, better cooling effect ,
4. Machine with Japan capacitors, brand NIPPON
5. Machine with 2 pcs radiators + 7 pcs fans, better cooling effect
6. Handle with USA xenon lamp, could emit 300,000 shots
7. Real top configuration, biger space water tank, better cooling effect
8. Alarm protection system of water flow and water temperature: stop all working immediately ,in case of any risk protecting people & machine against any risk at the first time.
9. User-friendly software design: simple parameters setting and easy operation.
10.germany pipe, Easier installation: Plug-and-play CPC connectors.
Before and after:
